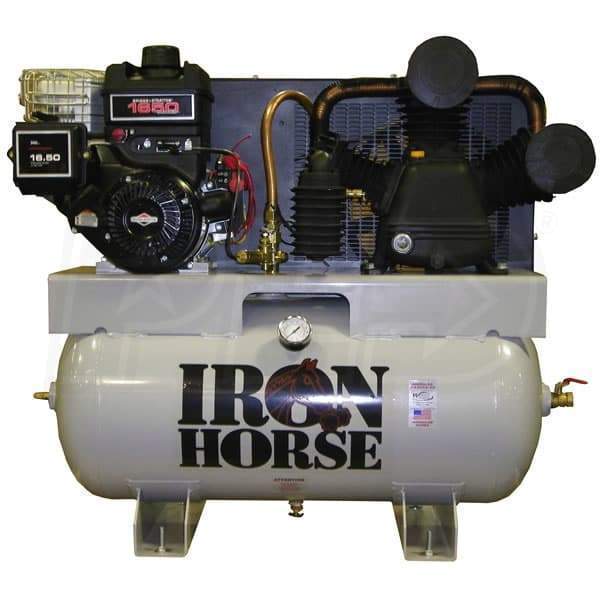

Iron Horse 30 Gallon Two Stage Truck Mount Air Compressor With Electric Start Briggs and Stratton Engine

Lift Gate & Residential Fees Will Still Be Applied!!

This item ships truckline.

• Truck Mounted 2 Stage Unit Produces 22 CFM @ 90 PSI
• Designed for farm duty, hobbiest, and semi-pro jobs
• Sturdy and reliable air pressure wherever you need it
• Electric and manual start for ease of operation
• Durable 14-HP Commercial Grade Briggs & Stratton Engine
• OHV provides more power, less fuel-use & lower emissions
• Runs cooler for longer engine life
• Engine Idle Control
• Control and regulates the engine idle speed
• Reduces operating costs & excessive wear
• Rugged 3 Cylinder Cast Iron Pump
• High efficiency reed valves for maximum performance
• Built to work hard and last a long time
• Efficient heat removal from flywheel for cooler running
• Individual & Removable Cylinders
• Provide smoother & cooler operation
• Allows for easy maintenance
• "V" Style Design
• Minimizes vibration, improves cooling, extends compressor life
• Large bore pistons give the ability to run at less RPM
• Large Air Filters With Automotive Drop-In Style Elements
• Extend compressor life, easy to maintain
• 30 Gallon ASME Tank
• Rated to 200 PSI for safety; heavy duty 3/4" ball valve included
• Convenient oil drain on front of unit
• Sturdy metal belt guard protects the belt & the user
• Easy View Oil Sight Gauge
• Monitor pump oil level at a glance
• Simplifies maintenance
• 1 Year Factory Warranty
• Shipping Dimensions- 428# 40x48x50

• TMI210000

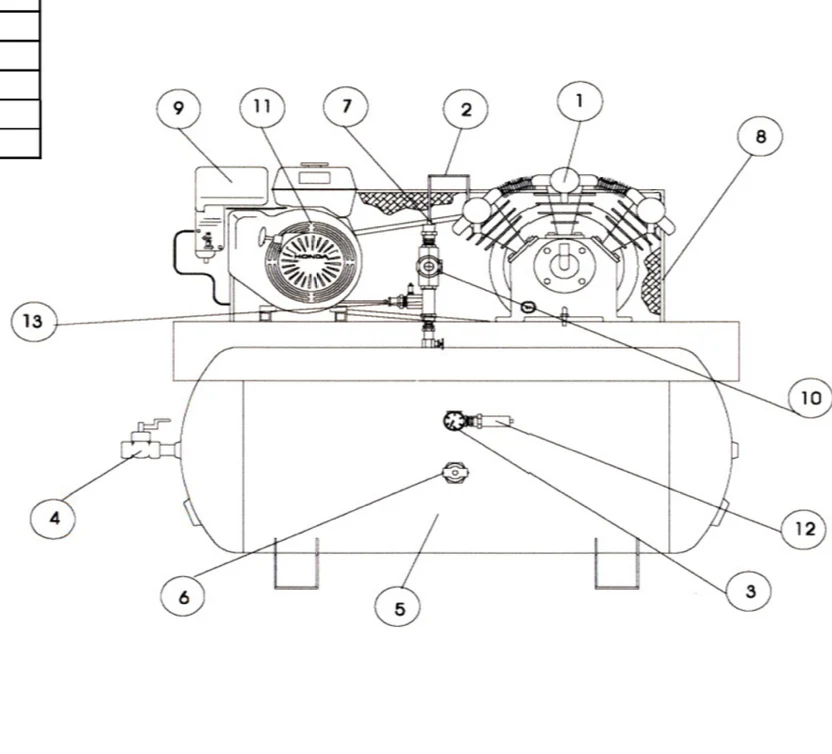

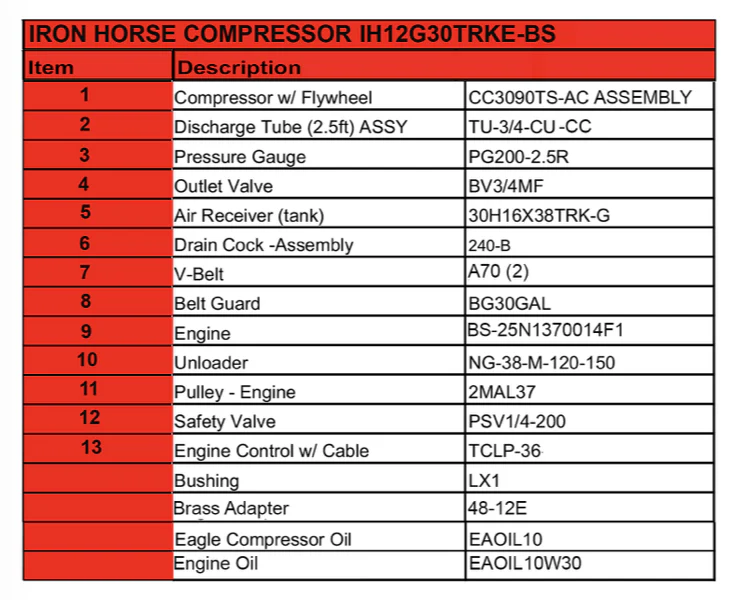

Item	Description	Product Code
1	Compressor w/ Flywheel	CC3090TS-AC
2	Discharge Tube (2.5ft) ASSY	TU-3/4-CU
3	Pressure Gauge	PG200-2.5R
4	Outlet Valve	BV3/4MF
5	Air Receiver (tank)	30H16X38TRK-G
6	Drain Cock -Assembly	240-B
7	V-Belt	B71
8	Belt Guard	BG30GAL
9	Engine	BS-25N1370014F1
10	Unloader	NG-38-M-120-150
11	Pulley - Engine	2MBL39
12	Safety Valve	PSV1/4-200
13	Engine Control w/ Cable	TCLP-36
	Bushing	LX1
	Eagle Compressor Oil	EAOIL10

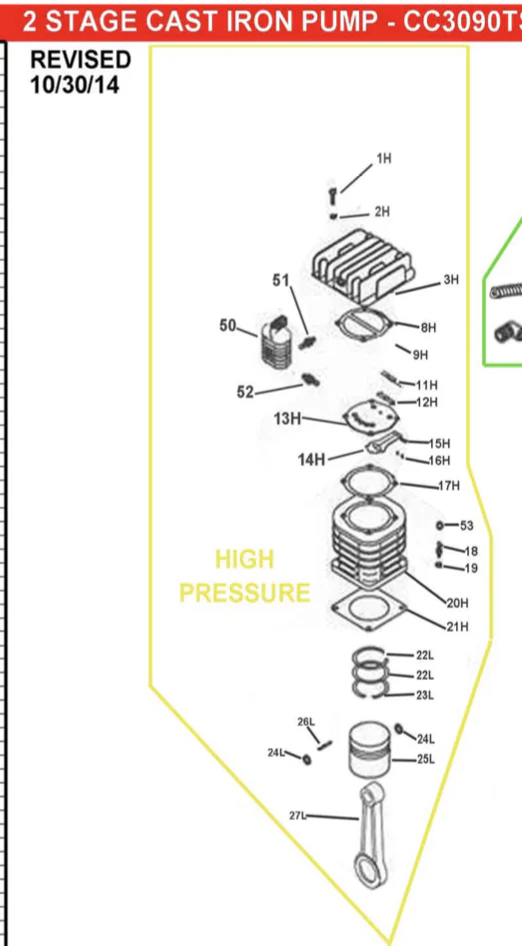

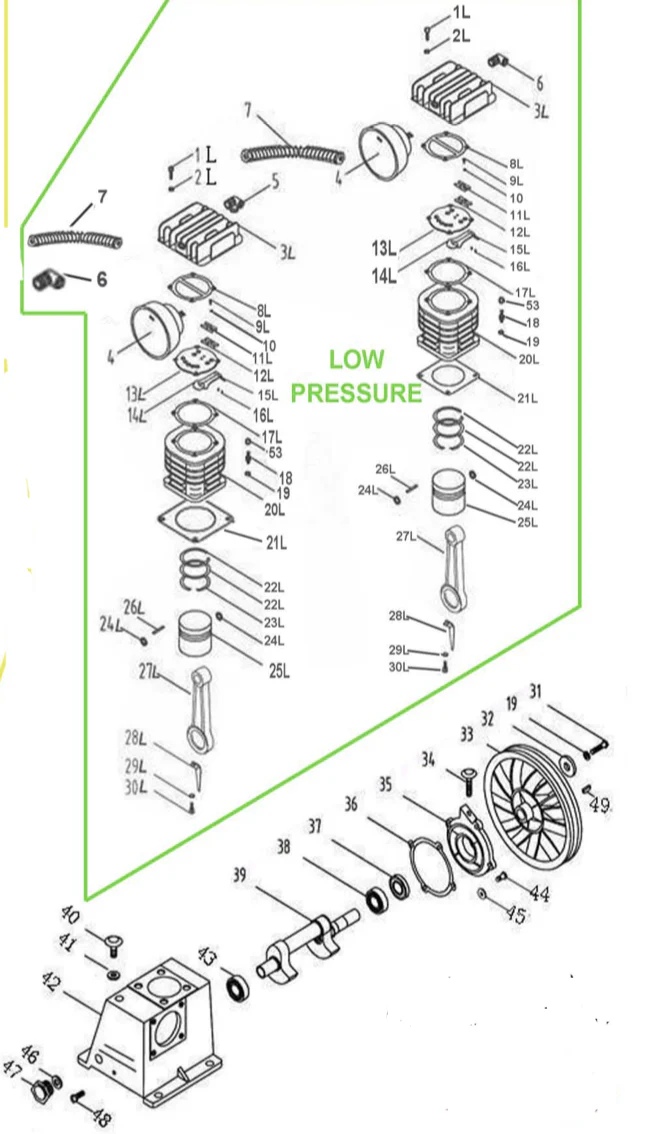

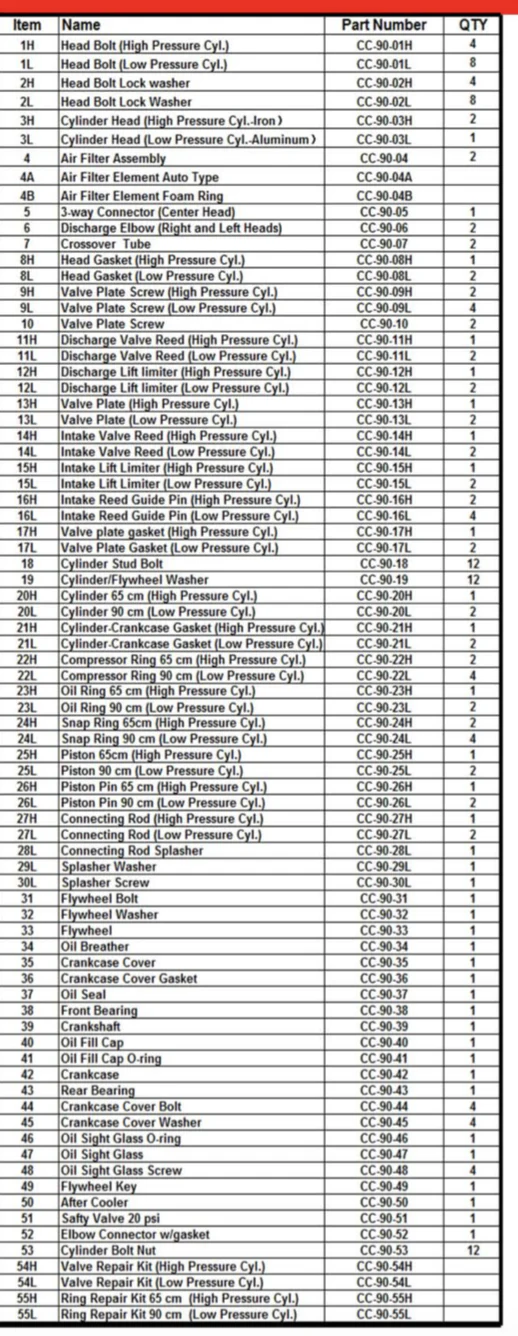

Item	Name	Part Number	Quantity
1H	Head Bolt (High Pressure Cyl.)	CC-90-01H	4
1L	Head Bolt (Low Pressure Cyl.)	CC-90-01L	8
2H	Head Bolt Lock Washer	CC-90-02H	4
2L	Head Bolt Lock Washer	CC-90-02L	8
3H	Cylinder Head (High Pressure Cyl. - Iron)	CC-90-03H	2
3L	Cylinder Head (Low Pressure Cyl. - Aluminum)	CC-90-03L	1
4	Air Filter Assembly	CC-90-04	2
4A	Air Filter Element Auto Type	CC-90-04A
4B	Air Filter Element Foam Ring	CC-90-04B
5	3-Way Connector (Center Head)	CC-90-05	1
6	Discharge Elbow (Right and Left Heads)	CC-90-06	2
7	Crossover Tube	CC-90-07	2
8H	Head Gasket (High Pressure Cyl.)	CC-90-08H	1
8L	Head Gasket (Low Pressure Cyl.)	CC-90-08L	2
9H	Valve Plate Screw (High Pressure Cyl.)	CC-90-09H	2
9L	Valve Plate Screw (Low Pressure Cyl.)	CC-90-09L	4
10	Valve Plate Screw	CC-90-10	2
11H	Discharge Valve Reed (High Pressure Cyl.)	CC-90-11H	1
11L	Discharge Valve Reed (Low Pressure Cyl.)	CC-90-11L	2
12H	Discharge Lift Limiter (High Pressure Cyl.)	CC-90-12H	1
12L	Discharge Lift Limiter (Low Pressure Cyl.)	CC-90-12L	2
13H	Valve Plate (High Pressure Cyl.)	CC-90-13H	1
13L	Valve Plate (Low Pressure Cyl.)	CC-90-13L	2
14H	Intake Valve Reed (High Pressure Cyl.)	CC-90-14H	1
14L	Intake Valve Reed (Low Pressure Cyl.)	CC-90-14L	2
15H	Intake Lift Limiter (High Pressure Cyl.)	CC-90-15H	1
15L	Intake Lift Limiter (Low Pressure Cyl)	CC-90-15L	2
16H	Intake Reed Guide Pin (High Pressure Cyl.)	CC-90-16H	2
16L	Intake Reed Guide Pin (Low Pressure Cyl.)	CC-90-16L	4
17H	Valve Plate Gasket (High Pressure Cyl.)	CC-90-17H	1
17L	Valve Plate Gasket (Low Pressure Cyl.)	CC-90-17L	2
18	Cylinder Stud Bolt	CC-90-18	12
19	Cylinder/Flywheel Washer	CC-90-19	12
20H	Cylinder 65 CM (High Pressure Cyl.)	CC-90-20H	1
20L	Cylinder 90 CM (Low Pressure Cyl.)	CC-90-20L	2
21H	Cylinder-Crankcase Gasket (High Pressure Cyl.)	CC-90-21H	1
21L	Cylinder-Crankcase Gasket (Low Pressure Cyl.)	CC-90-21L	2
22H	Compressor Ring 65 CM (High Pressure Cyl.)	CC-90-22H	2
22L	Compressor Ring 90 CM (Low Pressure Cyl.)	CC-90-22L	4
23H	Oil Ring 65 CM (High Pressure Cyl.)	CC-90-23H	1
23L	Oil Ring 90 CM (Low Pressure Cyl.)	CC-90-23L	2
24H	Snap Ring 65 CM (High Pressure Cyl.)	CC-90-24H	2
24L	Snap Ring 90 CM (Low Pressure Cyl.)	CC-90-24L	4
25H	Piston 65 CM (High Pressure Cyl.)	CC-90-25H	1
25L	Piston 90 CM (Low Pressure Cyl.)	CC-90-25L	2
26H	Piston Pin 65 CM (High Pressure Cyl.)	CC-90-26H	1
26L	Piston Pin 90 CM (Low Pressure Cyl.)	CC-90-26L	2
27H	Connecting Rod (High Pressure Cyl.)	CC-90-27H	1
27L	Connecting Rod (Low Pressure Cyl.)	CC-90-27L	2
28L	Connecting Rod Splasher	CC-90-28L	1
29L	Splasher Washer	CC-90-29L	1
30L	Splasher Screw	CC-90-30L	1
31	Flywheel Bolt	CC-90-31	1
32	Flywheel Washer	CC-90-32	1
33	Flywheel	CC-90-33	1
34	Oil Breather	CC-90-34	1
35	Crankcase Cover	CC-90-35	1
36	Crankcase Cover Gasket	CC-90-36	1
37	Oil Seal	CC-90-37	1
38	Front Bearing	CC-90-38	1
39	Crankshaft	CC-90-39	1
40	Oil Fill Cap	CC-90-40	1
41	Oil Fill Cap O-Ring	CC-90-41	1
42	Crankcase	CC-90-42	1
43	Rear Bearing	CC-90-43	1
44	Crankcase Cover Bolt	CC-90-44	4
45	Crankcase Cover Washer	CC-90-45	4
46	Oil Sight Glass O-Ring	CC-90-46	1
47	Oil Sight Glass	CC-90-47	1
48	Oil Sight Glass Screw	CC-90-48	4
49	Flywheel Key	CC-90-49	1
50	After Cooler	CC-90-50	1
51	Safety Valve 20 PSI	CC-90-51	1
52	Elbow Connector w/ Gasket	CC-90-52	1
53	Cylinder Bolt Nut	CC-90-53	12
54H	Valve Repair Kit (High Pressure Cyl.)	CC-90-54H
54L	Valve Repair Kit (Low Pressure Cyl.)	CC-90-54L
55H	Ring Repair Kit 65 CM (High Pressure Cyl.)	CC-90-55H
55L	Ring Repair Kit 90 CM (Low Pressure Cyl.)	CC-90-55L
